horizon keymaster helmet (V2)

The keymaster p.o.v. helmet rig is a versatile camera platform intended to be worn by the camera operator or actor.

The helmet itself includes a variety of mounting points as well as a gold mount battery plate for power distribution. It can comfortably fit most average size heads and comes complete with a full accessory kit of rods and brackets to mount nearly any camera in any position.

The Anton Bauer gold mount plate at the rear of the helmet allows not only for camera and accessory power, but also for critical camera counterweight. This allows larger more complete rigs to hang off the front of the helmet and maintains the ability for fluid, natural movement by the operator.

Standard 6mm Arri rosettes on either cheek of the helmet act as convenient mounts to extend rods forward, but can also be utilized to attach hand grips if additional support from the operator's arms is desired.

The helmet's upper cheese-plate has a variety of uses: a flat surface for Velcroing your MDR, a bolt-through plate to attach a top-mounted camera, or an additional location to fasten a 2nd battery plate (using the integrated hole pattern).

Another crucial feature is the forward facing 15mm lightweight-standard top bracket. Match this up with your camera's baseplate/top-plate and easily position even Alexa Mini or Red DSMC bodies in front of the operator's p.o.v.

FEATURES

Gold Mount Anton Bauer plate with dual P-tap ports
Comfortable, removable, washable, inner padding
Secure ratcheting chin cup
Upper cheese-plate with screw-through holes for camera mounting, 1/4-20 & 3/8-16 holes for AKS, and AB plate m3 hole pattern for top mounted battery
3 x Side-facing Arri-style rosettes (m6 threading)
2 x Forward-facing 3/8-16 accessory mounts with Arri-style anti-rotation pins
1 x Rear-facing 3/8-16 accessory mounts with Arri-style anti-rotation pins
Adjustable angle15mm LWS forward-facing rod mounts
Rigging head with baby pin receiver for stable support during setup
Complete rigging kit with large variety of rods/brackets/camera plates
All lightweight carbon fiber construction

KIT CONTENTS

1 x Keymaster Helmet (built in: rear cheee- plate, dual p-tap AB plate, cheese-plate, 2x Arri rosettes, adjustable 15mm LWS bracket, 3x 3/8-16 w/ pins)
1 x Secondary AB plate (for top)
3 x 12" CF 15mm rods
3 x 9" CF 15mm rods
3 x 6" CF 15mm rods
3 x 4.5" CF 15mm rods
1 x 8" Aluminum "cheese-rod"
2 x 2" Black aluminum 1/4-20 threaded 15mm rods
2 x 1" Black aluminum 1/4-20 threaded 15mm rods
2 x 2" Black MSE baby pins with 1/4-20 threads
8 x 15mm type cheesebroughs "rod starter" clamps
4 x Dual 15mm rotating rosette clamps
15mm rod-based camera mounting plate

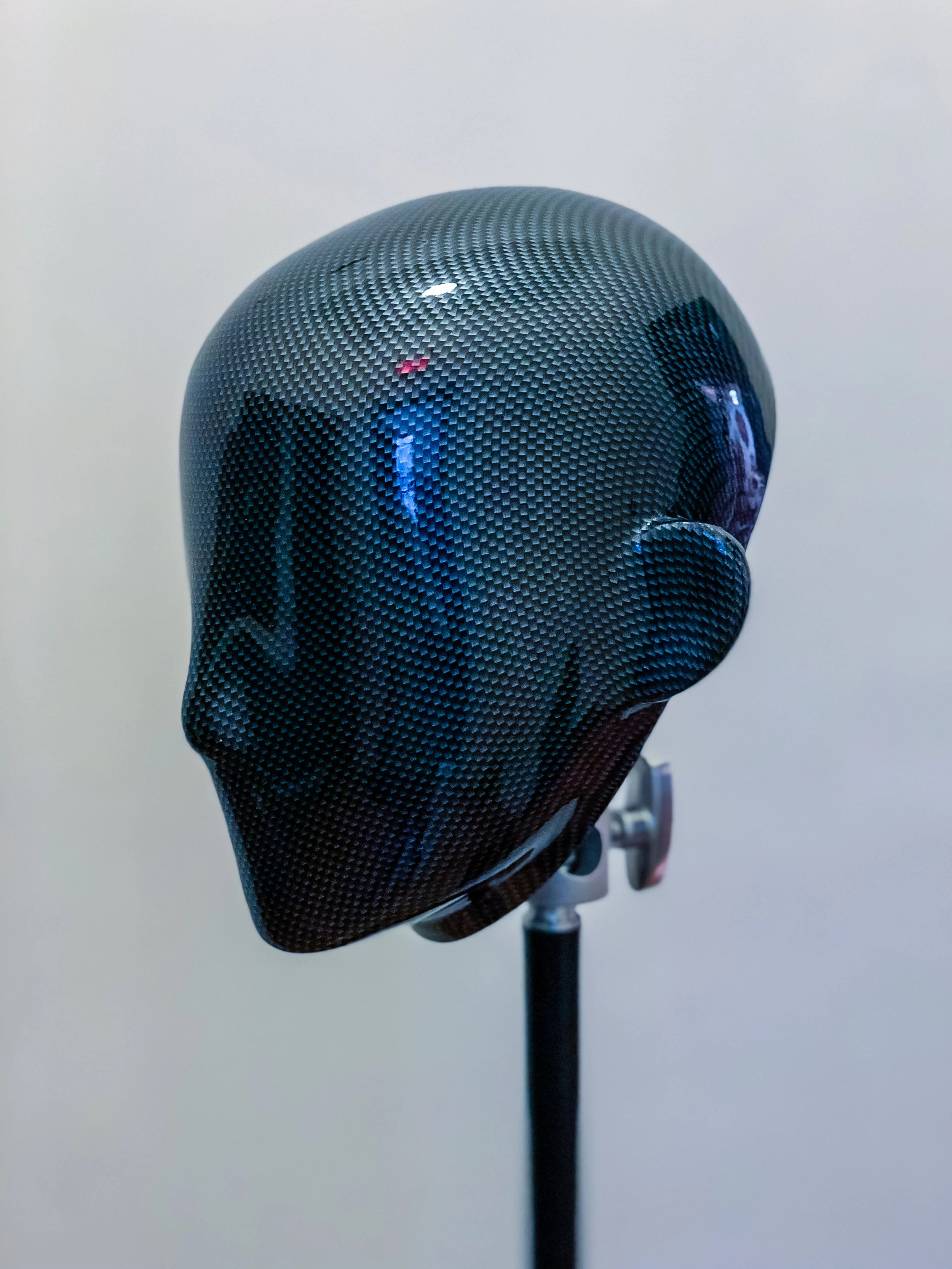

Rigging Head with adjustable baby pin receiver
Hard Shipping Case
Additional misc. hardware, camera screws, m3 screws,4-40 screws, tools, etc.

SPECIFICATIONS

dimensions (L x W x H)

11 x 9 x 10" (27.9 x 22.9 x 25.4 cm)

size

Large

power

1 x Anton Bauer Gold Mount Battery Plate (12-15v)
2 x P-tap Port (10a max)
[Optional second AB plate can be attached to the top cheese-plate as needed]

weight

2lbs 13oz

case dimensions (L x W x H)

19.5 x 19.7 x 10.9" (49.5 x 50.0 x 27.7 cm)

complete kit shipping weight

25lbs
